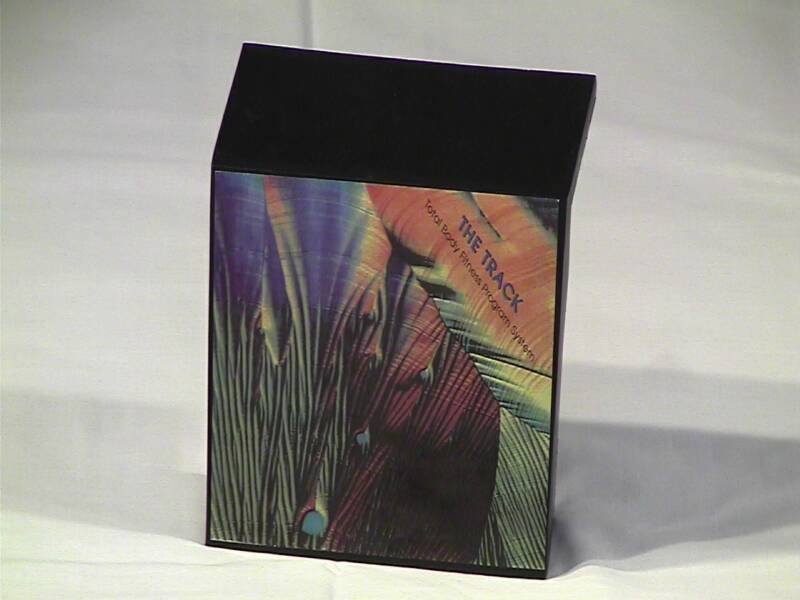

Shroud
The shroud is the top pulley of the machine.

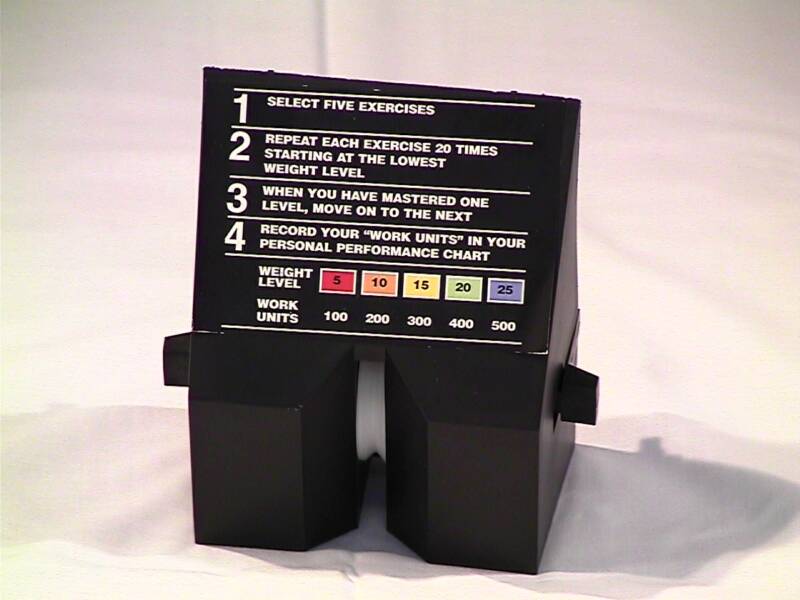

Exit Box
The exit box is where the main cable exits for the six different adjustments for the upper, middle, and lower exercises as it slides along the track.  On each side of the exit box are the right and left slide selectors that adjusts to the 6 different positions.

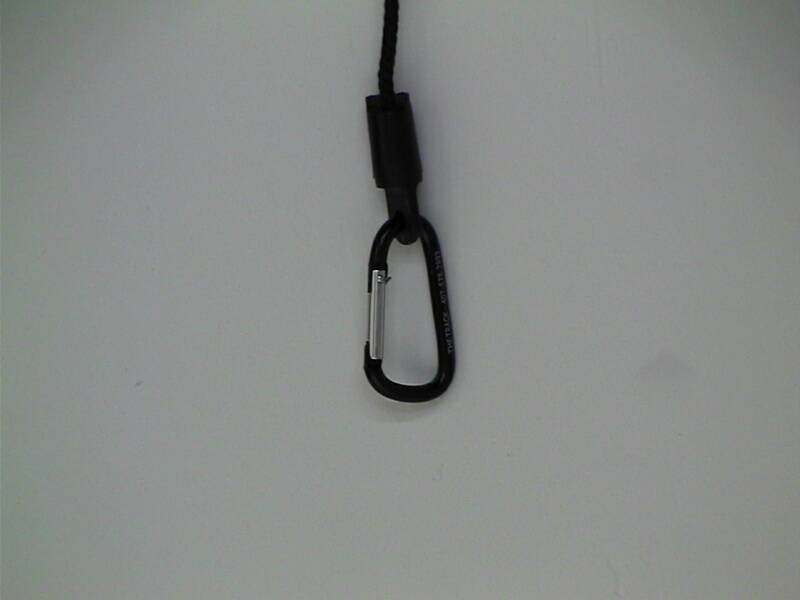

Clamp
The clamp is used for attaching to the handles or ankle strap as well as the cervical head gear.



















Cord-Lock Adjustment
The cord-lock adjustment adjusts the main cable to the setting for upper, middle, or lower exercise positions.




















Weight Selector Button
The selector button is used for selecting the color-coded weight levels from red to blue.

















Color-Coded Iron Weights

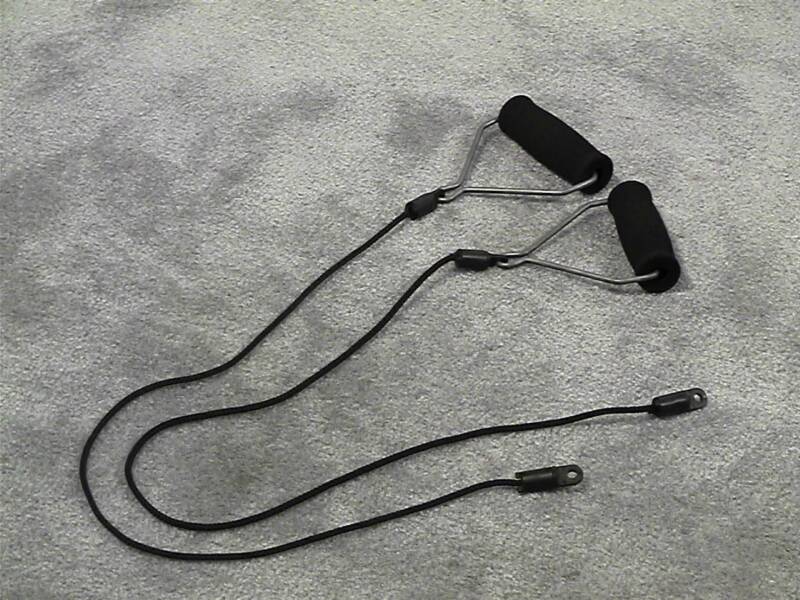

Handles
Exercises are performed using the single-handle and double-handles.

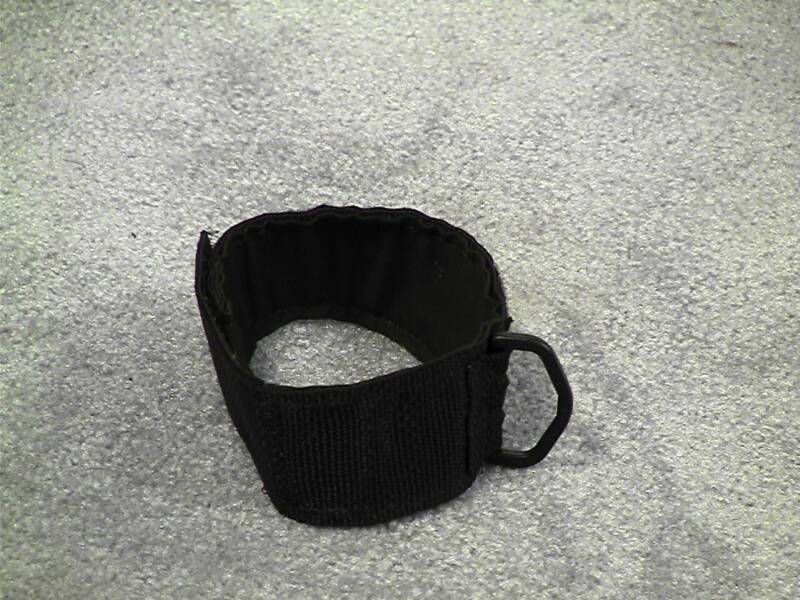

Ankle Strap
The ankle strap is used for the ankles and can be used for the wrist for those with low-finger dexterity.

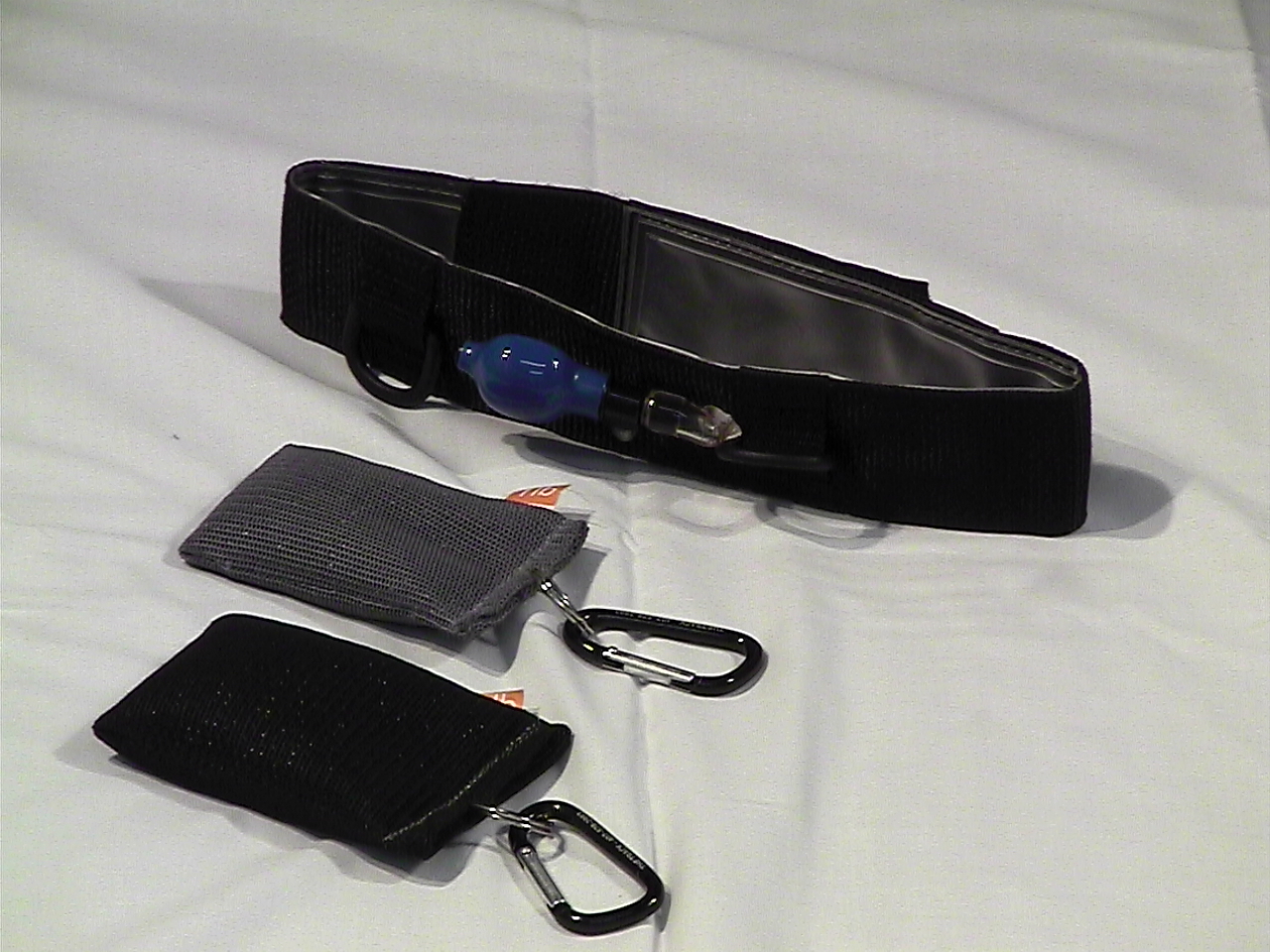

Cervical Gear with 1- and 2-Pound Weights
The cervical gear is used for strenthening the neck muscles; a 3-pound weight is also available.

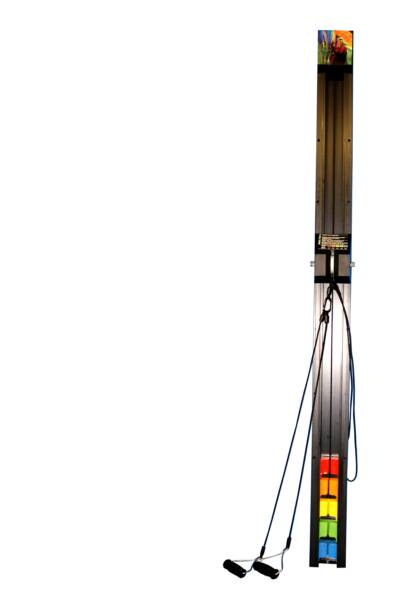

The Track Overview
Weight LevelsPounds

Red5 pounds
     Orange    10 pounds
     Yellow                    15 pounds
     Green      20 pounds
       Blue      25 pounds
The Track Specifications

  • 78" H x 6"W x 6" Depth
  • Shipping Weight is 42 lbs.
  • Shipping Box Dimensions -  80.00 in.x 7.00 in. x 7.00 in.
  • Installation - 3 #12" x 3" pan head screws with 3 mounting washers and 3 mounting supports
  • For concrete installation, use a 3/16" x 3-1/2" masonry bit and 3 #1/4" x 2-3/4" tapcon screws
